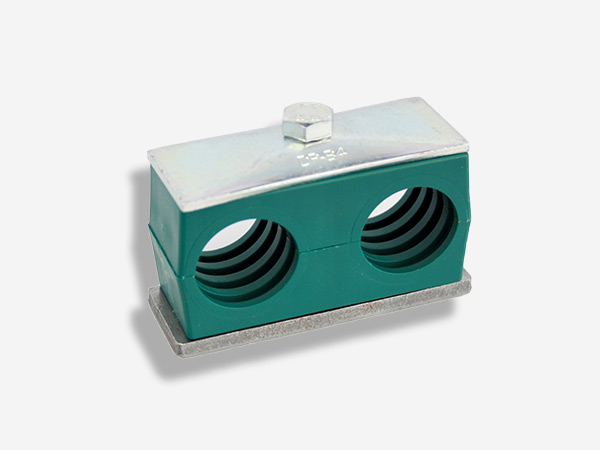

Twin Clamp - Pipes & Tubes

Twin clamp – DIN 3015 Part 3 are used for clamping 2 identical pipe – tube to piping system. Pipe – tube clamps made from thick plates & heavy bolts for high pressure application in piping. These tube clamps can be installed as well as used easily & they will provide more extended working life to their end users. It is cost effective and quality product.

Specification

Twin Tube Clamp & Twin Pipe Clamp

1/½ From 6 MM od up to 50.8 MM OD.
1/½ Can withstand W.P. up to 3500 psi (300 Bar)
1/½Available in Plastic PP / PA with Steel & stainless steel plate & bolt
1/½Aluminium: Natural Colour.
1/½Can be used along with Multilayer, Welding plates, Rail Nuts, etc.
1/½ Available in a range of building constructions including Rubber Inlay Types & more

Tube Clamp Types

Standard Series Clamp

Heavy Series Clamp

Pipe / Tube - Twin Clamps

DIN / ME GROUP	Pipe OD-d dia	a2	a3	a1	T	h2	BOLT SIZE
1	6	43	36	20	3	27	M6 x 35
	6.4
	8
	9.5
	10
	12
2	12.7	59	53	29	5	27	M8 x 35
	13.5
	14
	15
	16
	17.2
	18
3	19	74	67	36	5	37	M8 x 45
	20
	21.3
	22
	25
4	26.9	86	80	45	5	4	M8 x 50
	28
	30
5	32	112	106	56	5	53	M8 x 60
	33.7
	35
	38
	40
	42

Enquiry

If you have any query related to this product please contact us at +912222821251 or reach to us through email at info@avlok.com. Our experts would guide you the same and inform regarding other various metals suitable for your applications.

FAQ

What is a Twin Clamp?

Twin Clamp is a versatile clamping tool designed for securely holding objects in place during various projects such as woodworking, metalworking, or repairs. It features two adjustable arms that can be independently tightened, offering a strong grip for objects of different sizes and shapes.

What materials can the Twin Clamp be used on?

The Twin Clamp is designed to work with a variety of materials, including metal, plastic, and ceramics. However, always check the manufacturer’s guidelines for any material-specific recommendations to avoid damage.
