Standard Clamp Series - Pipes & Tube

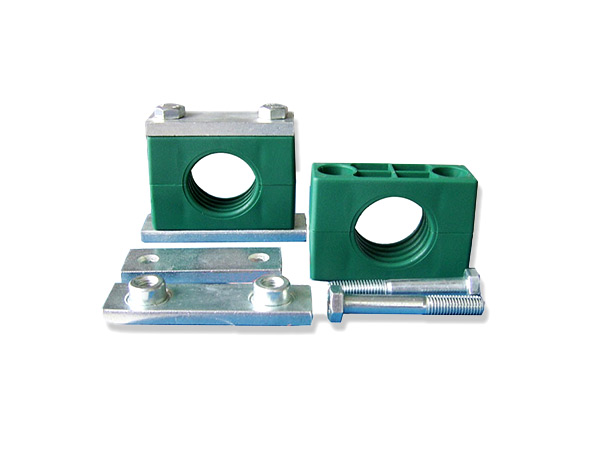

Standard Clamp Series – Tube clamps are generally applied for General Purpose applications. Standard Series Pipe Clamps DIN 3015-Part-1 which ensures quality standards always. These pipe clamps are economical and are mainly used for general application. These pipe clamps come in the following variants: Individual Pipe Clamp along with welding plate Individual Pipe Clamp without welding plates Multilayer Construction Rail nuts construction.

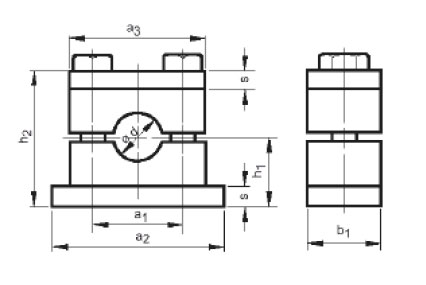

DIN / ME GROUP | PIPE OD d dia | a2 | a3 | a1 | T | h1 | BOLT SIZE |
---|---|---|---|---|---|---|---|
1 | 4 | 43 | 37 | 20 | 3 | 33 | M6X30 |
6 | |||||||
6.4 | |||||||
8 | |||||||
9.5 | |||||||
10 | |||||||
12 | |||||||
2 | 12.7 | 48 | 42 | 26 | 3 | 39 | M6x35 |
13.5 | |||||||
14 | |||||||
15 | |||||||
16 | |||||||
17.2 | |||||||
18 | |||||||
3 | 4 | 56 | 50 | 33 | 3 | 42 | M6x40 |
6 | |||||||
6.4 | |||||||
8 | |||||||
9.5 | |||||||
10 | |||||||
15 | |||||||
4 | 26.9 | 65 | 59 | 40 | 3 | 48 | M6x45 |
28 | |||||||
30 | |||||||
5 | 32 | 77 | 71 | 52 | 3 | 64 | M6x60 |
33.7 | |||||||
35 | |||||||
38 | |||||||
40 | |||||||
42 | |||||||
6 | 44.5 | 92 | 86 | 66 | 3 | 72 | M6x70 |
Features of Standard Series Pipe Clamps
» Designed as per DIN-3015 part-1
» Standard Pipe – Tube clamps available in Plastic Polypropylene and Polyimide , Aluminum clamp bodies with Steel / S.S. plates & bolts
W.P. range is up to 1500 PSI (100 BAR) for applications in Steel / stainless steel piping system
Enquiry
If you have any query related to this product please contact us at +912222821251 or reach to us through email at info@avlok.com. Our experts would guide you the same and inform regarding other various metals suitable for your applications.
FAQ
Standard tube clamps are mechanical fasteners designed to secure and connect round tubes or pipes. They are commonly used in various industries, including construction, plumbing, HVAC, and automotive, for creating structural frameworks or securing tubing.
Standard tube clamps are available in a wide range of sizes to fit various tube diameters. Common sizes range from small diameters (e.g., 1/4-inch) to larger sizes (e.g., 6 inches or more). Be sure to select a clamp that matches your tube’s diameter for optimal performance.
