3 Way Manifold Valve

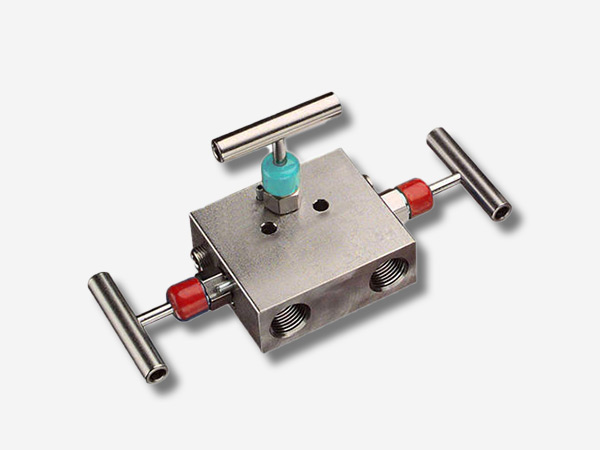

Avlok is a leading manufacturer, supplier & exporter of 3 way manifold valve. This manifold valve is designed to allow a wide variety of fluid distribution, thus permitting diversion, combination, or isolation of fluid flow from one inlet of two outlets or vice versa. Manifold 3-way used at different pressures request with Pressure gauges, Pressure switches & pressure transmitters. The AVLOK Pipe to Pipe 3-Valve Manifold is a general purpose design for connection system impulse lines and transmitters. This manifold consists of two block Valves and an equalizer valve. Connection are 1/2″ Female NPT on 2-1/8″ (54mm_ centre safety, an bonnet lock pin is standard.
Specification
- Connection: 1/2″ Female NPT to 1/2″ Female NPT.
- One-piece, high strength body construction for safety no welding used.
- 316 stainless steel construction for superior corrosion resistance.
- Bonnet lock pin prevents accidental valve disassembly.
- 2-1/8″ (54mm) Port centerline dimension for proper alignment.
- 100% pressure tested for shut-off and at all seals.
- Manifolds feature at 4:1 safety factor.
Types of Manifolds Valves
Material of Construction
| NO. | COMPONENT | MATERIAL SPECIFICATION |
|---|---|---|
| 1. | HANDLE | STAINLESS STEEL |
| 2. | HANDLE PIN | STAINLESS STEEL |
| 3. | SET SCREW | |
| 4. | LOCK NUT | STAINLESS STEEL |
| 5. | PACKING BOLT | SS316 |
| 6. | PACKING SUPPORT | REINFORCED TFE |
| 7. | PACKING | TFE/GRAFOIL |
| 8. | BONNET | SS316 |
| 9a. | STEAM (NEEDLE TIP) | |
| 9b. | STEAM (PLUG TIP) | |
| 10. | SEAT (PLUG TIP) | DELRIN |
| 11. | LOCK PLATE | STAINLESS STEEL |
| 12. | CAP SCREW | |
| 13. | MANIFOLD BODY | SS316 |
Enquiry
If you have any query related to this product please contact us at +912222821251Â or reach to us through email at info@avlok.com. Our experts would guide you the same and inform regarding other various metals suitable for your applications.
FAQ
3-way manifold valve is a type of valve used to control the flow of fluids or gases in a system with three ports: one inlet port and two outlet ports (or vice versa). It can direct flow between different pathways, allowing for more complex fluid distribution or isolation control in process and instrumentation systems.
3-way manifold valves are commonly used in applications where fluid flow needs to be diverted, isolated, or regulated between different parts of a system. Typical uses include pressure transmitters, differential pressure measurement systems, or systems requiring pressure relief and fluid redirection.
