Avlok® Tube Clamps – Secure, Reliable & Engineered for Precision
Tube Clamp
Avlok® is a trusted name in the instrumentation and industrial fittings industry, offering a complete range of Tube Clamps designed to provide reliable, vibration-free, and safe installation of pipes, tubes, and hoses. Our Tube Clamps are engineered with precision to meet global quality standards and ensure long-term performance even in the most demanding environments.
High-Performance Clamping Solutions
Avlok® Tube Clamps are designed to support and secure pipes and tubes across industries such as oil & gas, petrochemical, power generation, chemical processing, and instrumentation systems. Manufactured from high-grade materials, these clamps reduce vibration, noise, and mechanical strain, ensuring system integrity and extending equipment life.
Specification
Brand: AVLOK
Locking Screw: STANDARD SERIES – M6 X 25 MM TO M6 X 100 MM, HEAVY SERIES – M10 X 45 MM TO M30 X 300 MM
Clamp Body Material: POLYPROPYLENE, ALUMINUM, POLYAMIDE
Size Range: STANDARD SERIES – 1 /4’’ TO 2 ½’’ & 6 MM TO 76.1 MM, HEAVY SERIES – 1/4” TO 8” & 6 MM TO 219 MM

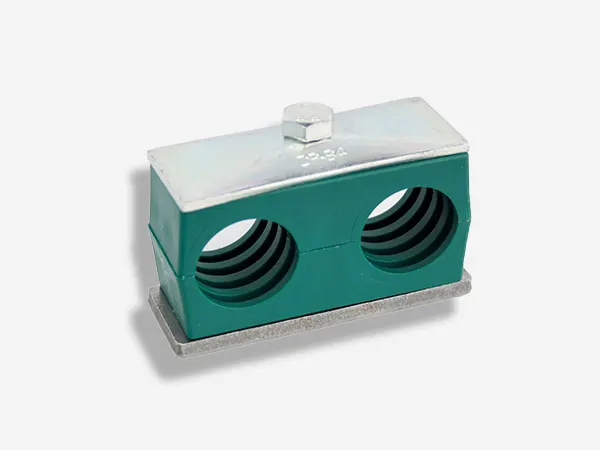

Type: STANDARD (LIGHT DUTY), HEAVY DUTY & TWIN CLAMP, MULTI LAYER
Pressure: UPTO 6000 PSI
Material: JAWS – POLYPROPYLENE, ALUMINUM, POLYAMIDE TOP & BOTTOM PLATE AND BOLT – MS & STAINLESS STEEL 304, 316
Why Choose AVLOK® Tube Clamps?
Precision-engineered for durability and reliability
Suitable for a wide range of industrial applications
Backed by Avlok®’s legacy of excellence in instrumentation fittings
Custom solutions available for project-specific requirements
Sizes & Measurements
| Clamping Range # mm | Size # inches | Width (w) # mm | Thickness # mm |
|---|---|---|---|
| 20-25 | 1/2″ | 20 | 2 |
| 26-30 | 3/4″ | 20 | 2 |
| 32-36 | 1″ | 20 | 2 |
| 38-44 | 1 1/4″ | 20 | 2 |
| 47-51 | 1 1/2″ | 20 | 2 |
| 60-64 | 2″ | 20 | 2 |
| 74-80 | 2 1/2″ | 20 | 2 |
| 87-92 | 3″ | 20 | 2 |
| 113-118 | 4″ | 20 | 2 |
| 138-142 | 5″ | 20 | 2 |
| 160-167 | 6″ | 20 | 2 |
| 215-220 | 8″ | 20 | 2 |
Enquiry
If you have any query related to this product please contact us at +912222821251 or reach to us through email at info@avlok.com. Our experts would guide you the same and inform regarding other various metals suitable for your applications.
FAQ
Tube clamps are designed to hold tubes or conduits in place for various applications, including plumbing, heating, electrical work, and more. Additionally, they are often used to construct tubular structures such as handrails, guardrails, and shelving systems.
Tube clamps feature a screw mechanism that tightens the clamp around the tube, securing it in place. Some clamps are equipped with a polypropylene cushion to protect against rubbing and chafing.
