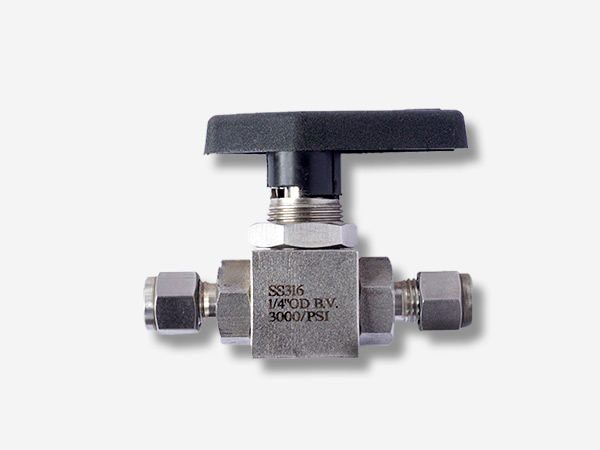

Ball Valves
We manufacture a wide range of robust and easy to maintain Ball Valves that are utilized across numerous process industries. These valves are manufactured in variety of dimensions & sizes. We also execute customized product development in bulk. Our range of stainless ball valves, ball check valves is known for its durability & functional stability. Hastelloy ball valves manufacturer and exporter in Norway
SPECIFICATION
- CONNECTION : AVLOK TUBE FITTING FEMALE THREAD.
- OPERATION TEMPERATURE : -10°c ~+65°C (50°F~150°F).
- MAX OPERATION PRESSURE : ASTM AT82 F316 : 3000 PSIG 2(206BAR).
- SIZE RANGE 1/8″ UPTO 1″.
- AVAILABLE IN S.S. AND BRASS.

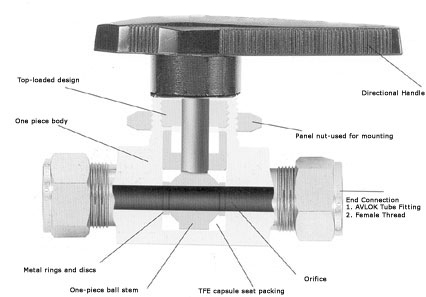

| NO | DESCRIPTION | SS316 |
| 1. | HANDLE | NYLON |
| 2. | SET SCREW | STEEL |
| 3. | PACKING BOLT | 316SS |
| 4. | UPPER GLAND | 316SS |
| 5. | BUSHING | TFE |
| 6. | LOWER GLAND | 316SS |
| 7. | UPPER PACKING | TFE |
| 8. | BALL STEM | 316SS |
| 9. | SIDE DISK | 316SS |
| 10. | LOWER PACKING | TFE |
| 11. | PANEL NUT | 304SS |
| 12. | BODY | 316SS |
Product Enquiry
All Dimensions are for reference only, and are subject to change without prior notice. Sizes and types other than featured above are available on request.
