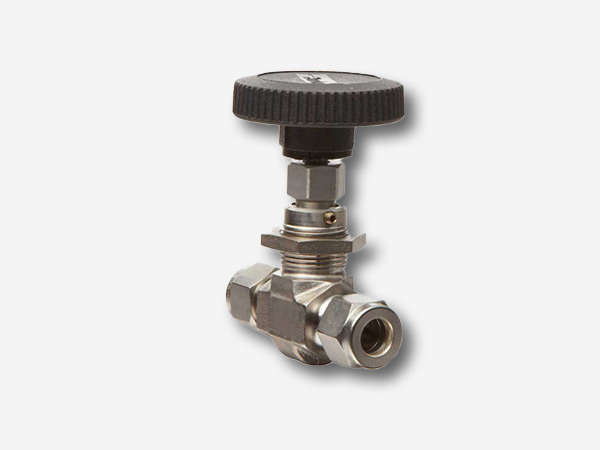

Needle Valves
SPECIFICATION
- CONNECTION :MALE / FEMALE THREAD (BSP/NPT) /.OD ENDS / WELDED ENDS.
- MAX OPERATION TEMPERATURE : -50°c ~ +232°C.
- MAX OPERATION PRESSURE ASTM A182 F316 : 5000PSIG BRASS : 3000PSIG.
- AVAILABLE WITH PLASTIC OR SS/ALUMINIUM BAR HANDLES.
- Nuclear and Defense industry.
- Higher temperature ratings available on request.

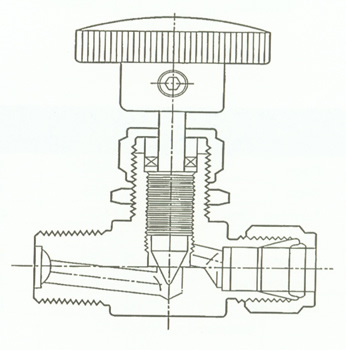

MATERIALS OF CONSTRUCTION :
| No. | Description | SS316 VALVES |
BRASS VALVES | |
| 1. | BODY | 316SS | BRASS | |
| 2. | NUT | 316SS | BRASS | |
| 3. | FRONT FERRULE | 316SS | BRASS | |
| 4. | BACK FERRULE | 316SS | BRASS | |
| 5. | STEM | 316SS | 316SS | |
| 6. | PACKING RING | 316SS | BRASS | |
| 7. | PACKING | TFE | TFE | |
| 8. | PACKING GLAND | 316SS | BRASS | |
| 9. | PACKING NUT | 316SS | BRASS | |
| 10. | LOCK NUT | 316SS | BRASS | |
| 11. | HANDLE | STANDARD | P.C | P.C |
| ALTERNATIVE | 316SS(BAR) | BRASS(BAR) | ||

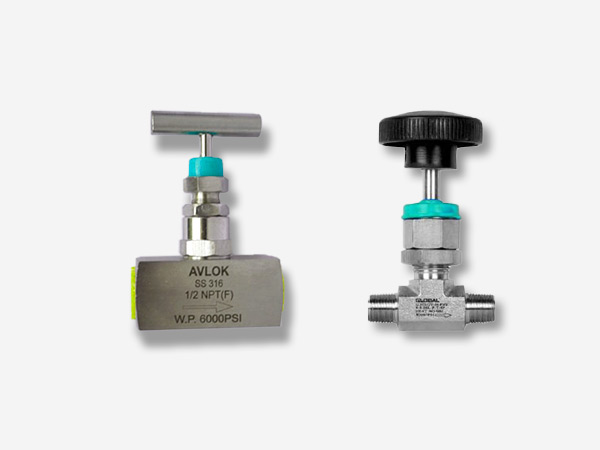

SPECIFICATION
- CONNECTION : FEMALE THREAD (BSP/NPT).
- MAX OPERATION TEMPERATURE : -50°c ~ +232°C.
- MAX OPERATION PRESSURE ASTM A182 F316 : 5000PSIG BRASS : 3000PSIG.
- AVAILABLE WITH PLASTIC/SS BAR HANDLES.
- SIZE RANGE 1/8″ UPTO 1″.
SPECIFICATION
- CONNECTION : MALE / FEMALE THREAD (BSP/NPT) /.OD ENDS / WELDED ENDS.
- MAX OPERATION TEMPERATURE : -50°c ~ +232°C.
- MAX OPERATION PRESSURE.
- ASTM A182 F316 : 5000PSIG BRASS : 3000PSIG.
- AVAILABLE WITH PLASTIC/SS BAR HANDLES.
- SIZE RANGE 1/8″ UPTO 1″.

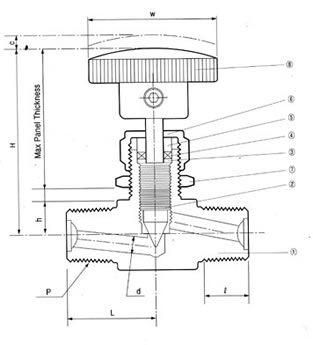

MATERIALS OF CONSTRUCTION :
| No. | Description | SS316 VALVES |
BRASS VALVES | |
| 1. | BODY | 316SS | BRASS | |
| 2. | STEM | 316SS | 316SS | |
| 3. | PACKING RING | 316SS | BRASS | |
| 4. | PACKING | TFE | TFE | |
| 5. | PACKING GLAND | 316SS | BRASS | |
| 6. | PACKING NUT | 316SS | BRASS | |
| 7. | LOCK NUT | 316SS | BRASS | |
| 8. | HANDLE | STANDARD | P.C | P.C |
| ALTERNATIVE | 316SS(BAR) | BRASS(BAR) | ||
MATERIALS OF CONSTRUCTION :
| No. | Description | SS316 VALVES |
BRASS VALVES | |
| 1. | BODY | 316SS | BRASS | |
| 2. | STEM | 316SS | 316SS | |
| 3. | PACKING RING | 316SS | BRASS | |
| 4. | PACKING | TFE | TFE | |
| 5. | PACKING GLAND | 316SS | BRASS | |
| 6. | PACKING NUT | 316SS | BRASS | |
| 7. | LOCK NUT | 316SS | BRASS | |
| 8. | HANDLE | STANDARD | P.C | P.C |
| ALTERNATIVE | 316SS(BAR) | BRASS(BAR) | ||
Product Enquiry
All Dimensions are for reference only, and are subject to change without prior notice. Sizes and types other than featured above are available on request.
