Check Valves

We manufacture & export a whole line of Check valves including Brass Check Valves, Stainless Steel Check Valves, Relief & Non-return Valves that cater to varied industrial requirements hold the following.

FEATURES

  •  Available in SS316 Stainless Steel and Brass.
  •  Working pressure upto 3000 PSIG.
  •  Temperature rating -20°C to 190°C with viton seal.
  •  Cracking pressure 1, 10, 25 PSIG available.
  •  Available in AVLOK, male/female (BSP/NPT Threads).
  •  Sizes range 1/8” upto 1”.

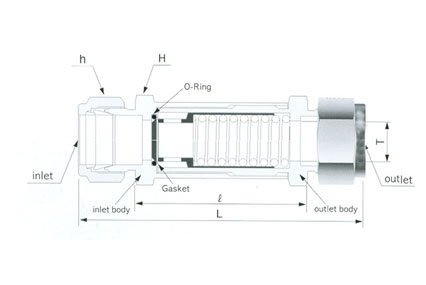

Body SS316/Brass
O-Ring Viton
Gasket SS316
Poppet SS316
Spring SS316

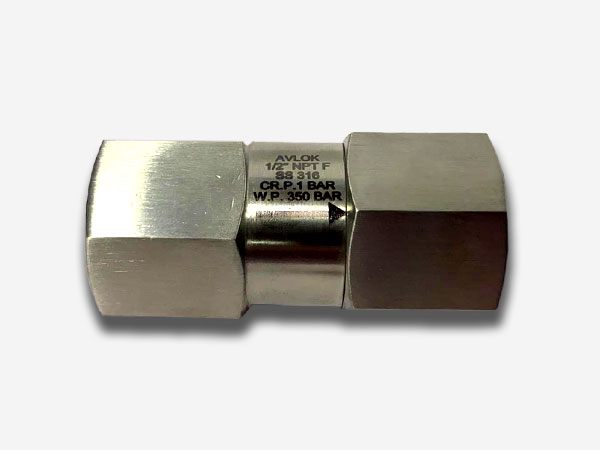

check-valves-needle
check_valves

All Dimensions are for reference only, and are subject to change without prior Notice Sizes and types other than featured above are available on request.
